Attributes
Brand	NTN
Weight	0.770000
Product Category	Tapered roller bearings
Inner (mm)	38.1
Outer (mm)	82.55
Width (mm)	29.37
Seal	None, open bearing
Cage	Sheet steel cage

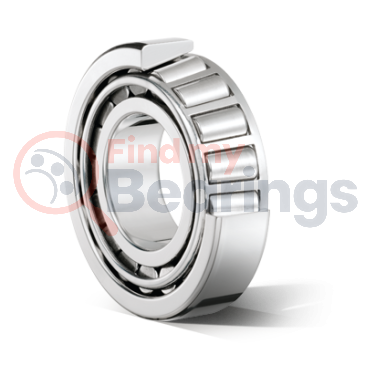

4T-HM801346/HM801310-NTN

Product Category

Tapered roller bearings

SKU

400-09336

£89.28 £74.40

Ships in 5-6 working days · 4 pcs

View substitutes

UK & Ireland delivery · 1-2 working days.

Same day dispatch on orders before 4:30pm

Need it sooner? Contact our Sales Team

Attributes
Bore	Cylindrical bore
Roller Rows	Single row bearing
Rings Material	Case-hardened Steel
Temperature Range	-40 to +120°C
Arrangement	Standard version
B - Width Of Inner Ring (mm)	28.575
C - Width Of Outer Ring (mm)	23.02
r - Housing Radius Max (mm)	3.3
R - Shaft Radius Max (mm)	0.8
Bearing Type	Cone/Cup
Limit Speed Oil (rpm)	6200
Limit Speed Grease (rpm)	4700
Dyn. Load Rating (kn)	96.5
Stat. Load Rating (kn)	117
Fag/ina Part Number	KHM801346/HM801310
Nsk Part Number	HM801346/HM801310
Skf Part Number	HM 801346/310/Q
Tolerance Class	Tolerance class P0/PN2 / ABEC 1
Iso	ISO 355
