| Brand | NTN |
|---|---|
| Weight | 0.940000 |
| Product Category | Tapered roller bearings |
| Inner (mm) | 45.987 |
| Outer (mm) | 90.975 |
| Width (mm) | 32 |
| Seal | None, open bearing |
| Cage | Sheet steel cage |

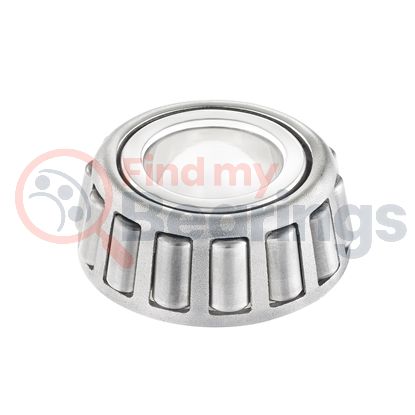

4T-HM204049/HM204010-NTN
Product Category
Tapered roller bearings
SKU
400-08630
£80.12
£66.77
ships tomorrow
·
3
pcs
Ships in 5-6 working days
·
1
pc
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Bore | Cylindrical bore |
|---|---|
| Roller Rows | Single row bearing |
| Rings Material | Case-hardened Steel |
| Temperature Range | -40 to +120°C |
| Arrangement | Standard version |
| B - Width Of Inner Ring (mm) | 32 |
| C - Width Of Outer Ring (mm) | 26.5 |
| r - Housing Radius Max (mm) | 3.5 |
| R - Shaft Radius Max (mm) | 3.5 |
| Bearing Type | Cone/Cup |
| Limit Speed Oil (rpm) | 5600 |
| Limit Speed Grease (rpm) | 4200 |
| Dyn. Load Rating (kn) | 117 |
| Stat. Load Rating (kn) | 147 |
| Fag/ina Part Number | KHM204049-HM204010 |
| Tolerance Class | Tolerance class P0/PN2 / ABEC 1 |
| Iso | ISO 355 |
Need help or advice? Talk to our experts Contact us
Product Substitutes
Product
Dimensions
Availability
Unit price (Ex VAT)
-

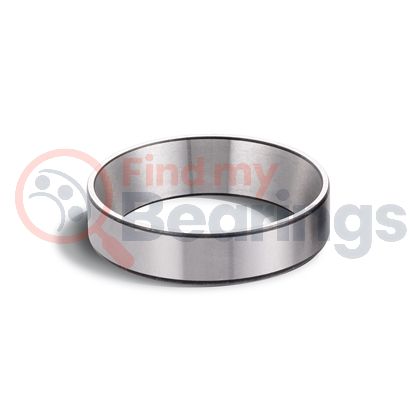

4T-HM204010-NTN
Tapered roller bearings
Dimensions: 0 x 90.975 x 26.55-6 days: · 8 pcs£27.30 £22.75 -
-
HM204049/HM204010-TIMKEN
Tapered roller bearings
Dimensions: 45.987 x 90.975 x 325-6 days: · 6 pcs£104.93 £87.44 -
HM204010-TIMKEN
Tapered roller bearings
Dimensions: 0 x 90.975 x 26.55-6 days: · 5 pcs£36.42 £30.35 -
