| Brand | NTN |
|---|---|
| Weight | 3.200000 |
| Product Category | Tapered roller bearings |
| Inner (mm) | 61.912 |
| Outer (mm) | 146.05 |
| Width (mm) | 41.275 |
| Seal | None, open bearing |
| Cage | Sheet steel cage |

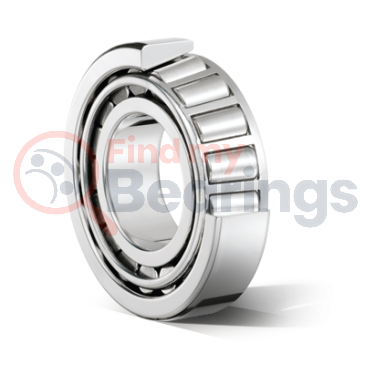

4T-H913842/H913810-NTN
Product Category
Tapered roller bearings
SKU
400-09330
Out of stock
View substitutes
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Bore | Cylindrical bore |
|---|---|
| Roller Rows | Single row bearing |
| Rings Material | Case-hardened Steel |
| Temperature Range | -40 to +120°C |
| Arrangement | Standard version |
| B - Width Of Inner Ring (mm) | 39.688 |
| C - Width Of Outer Ring (mm) | 25.4 |
| r - Housing Radius Max (mm) | 3.3 |
| R - Shaft Radius Max (mm) | 3.5 |
| Bearing Type | Cone/Cup |
| Limit Speed Oil (rpm) | 3200 |
| Limit Speed Grease (rpm) | 2400 |
| Dyn. Load Rating (kn) | 220 |
| Stat. Load Rating (kn) | 234 |
| Fag/ina Part Number | KH913842/H913810 |
| Nsk Part Number | H913842/H913810 |
| Skf Part Number | H913842/810/QCL7C |
| Tolerance Class | Tolerance class P0/PN2 / ABEC 1 |
| Iso | ISO 355 |
Need help or advice? Talk to our experts Contact us
Product Substitutes
Product
Dimensions
Availability
Unit price (Ex VAT)
-

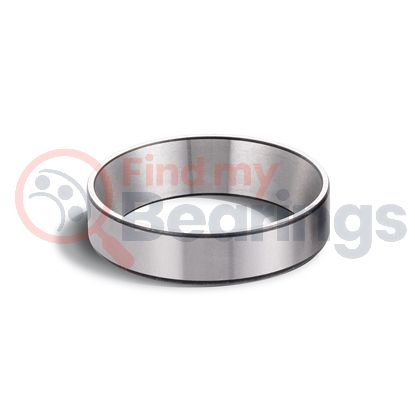

4T-H913810-NTN
Tapered roller bearings
Dimensions: 0 x 146.05 x 25.45-6 days: · 5 pcs£55.58 £46.32 -
-
-
