| Brand | NTN |
|---|---|
| Weight | 2.390000 |
| Product Category | Tapered roller bearings |
| Inner (mm) | 146.05 |
| Outer (mm) | 193.675 |
| Width (mm) | 28.575 |
| Seal | None, open bearing |
| Cage | Sheet steel cage |

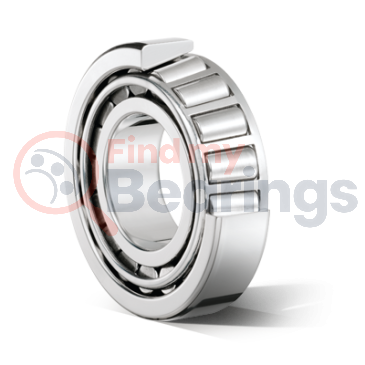

4T-36690/36620-NTN
Product Category
Tapered roller bearings
SKU
400-08085
£272.35
£226.96
Ships in 5-6 working days
·
17
pcs
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Bore | Cylindrical bore |
|---|---|
| Rings Material | Case-hardened Steel |
| B - Width Of Inner Ring (mm) | 28.575 |
| C - Width Of Outer Ring (mm) | 23.02 |
| r - Housing Radius Max (mm) | 1.5 |
| R - Shaft Radius Max (mm) | 1.5 |
| Bearing Type | Cone/Cup |
| Limit Speed Oil (rpm) | 2200 |
| Limit Speed Grease (rpm) | 1600 |
| Dyn. Load Rating (kn) | 183 |
| Stat. Load Rating (kn) | 340 |
| Fag/ina Part Number | AK36690/36620-XL |
| Nsk Part Number | 36690/36620 |
| Iso | ISO 355 |
Need help or advice? Talk to our experts Contact us
Product Substitutes
Product
Dimensions
Availability
Unit price (Ex VAT)
-

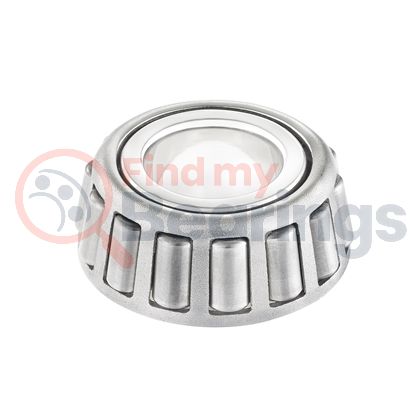

4T-36690-NTN
Tapered roller bearings
Dimensions: 146.05 x 0 x 28.5755-6 days: · 4 pcs£196.98 £164.15 -

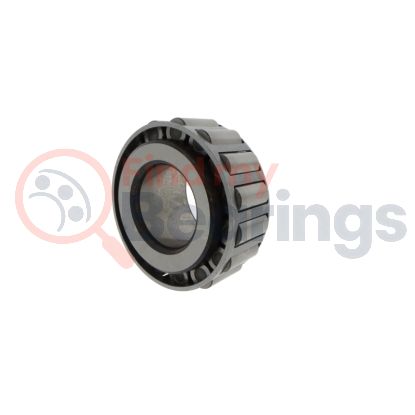

36690-TIMKEN
Tapered roller bearings
Dimensions: 146.05 x 0 x 28.5755-6 days: · 7 pcs£260.95 £217.46 -
