| Brand | NTN |
|---|---|
| Weight | 1.080000 |
| Product Category | Tapered roller bearings |
| Inner (mm) | 82.55 |
| Outer (mm) | 125.412 |
| Width (mm) | 25.4 |
| Seal | None, open bearing |
| Cage | Sheet steel cage |

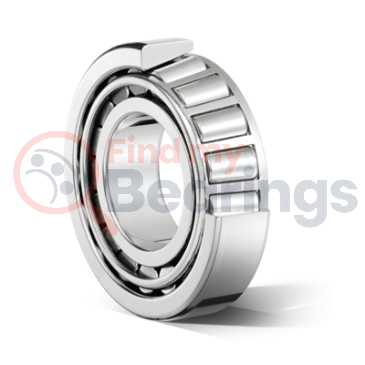

4T-27687/27620-NTN
Product Category
Tapered roller bearings
SKU
400-09224
Out of stock
View substitutes
UK & Ireland delivery · 1-2 working days.
Same day dispatch on orders before 4:30pm
Need it sooner? Contact our Sales Team
| Bore | Cylindrical bore |
|---|---|
| Roller Rows | Single row bearing |
| Rings Material | Case-hardened Steel |
| Temperature Range | -40 to +120°C |
| Arrangement | Standard version |
| B - Width Of Inner Ring (mm) | 25.4 |
| C - Width Of Outer Ring (mm) | 19.845 |
| r - Housing Radius Max (mm) | 1.5 |
| R - Shaft Radius Max (mm) | 3.5 |
| Bearing Type | Cone/Cup |
| Limit Speed Oil (rpm) | 3600 |
| Limit Speed Grease (rpm) | 2700 |
| Dyn. Load Rating (kn) | 113 |
| Stat. Load Rating (kn) | 163 |
| Nsk Part Number | 27687/27620 |
| Tolerance Class | Tolerance class P0/PN2 / ABEC 1 |
| Iso | ISO 355 |
Need help or advice? Talk to our experts Contact us
Product Substitutes
Product
Dimensions
Availability
Unit price (Ex VAT)
-
27687/20-PFI
Tapered roller bearings
Dimensions: 82.55 x 125.412 x 25.4Ships today · 6 pcs£42.64 £35.53 -

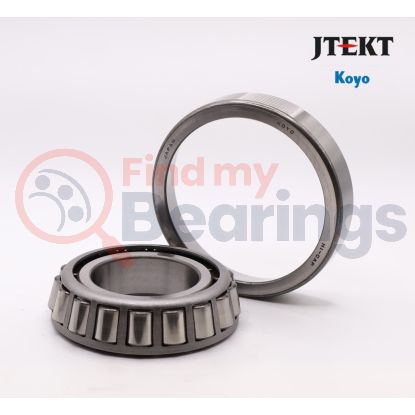

27687/27620-KOYO (JTEKT)
Tapered roller bearings
Dimensions: 82.55 x 125.412 x 25.4Ships today · 5 pcs£84.24 £70.20 -

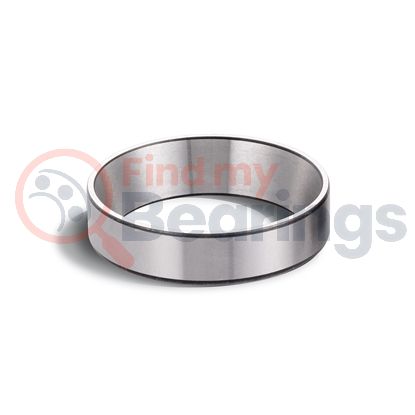

4T-27620-NTN
Tapered roller bearings
Dimensions: 0 x 125.412 x 19.8455-6 days: · 36 pcs£39.28 £32.73 -
27620-TIMKEN
Tapered roller bearings
Dimensions: 0 x 125.412 x 19.8455-6 days: · 30 pcs£56.03 £46.69 -
